Ohaus Achiever 5000 Overhead Stirrer
|
|
Reliable Overhead Stirrers with Excellent Performance for Everyday Use
OHAUS Achiever™ 5000 Overhead Stirrers are designed for powerful, precise stirring, safety and simplicity in all applications. The sealed design has an IP54 rating and ensures safe mixing performance even in the most demanding applications. The keyless chuck and software-controlled speed ramping provide easy setup and safe stirring to protect the sample and user. Select from five models with up to 200 Ncm torque and up to 100 L volume capacity.
Features:
- Powerful mixing and constant speed is assured with the brushless motor and torque compensation technology – delivering accurate, controlled stirring of viscous liquids with quiet operation
- Simplify setup with the Keyless Chuck – no tools required. Change shafts quickly and easily with one-handed operation. This unique design will save time and effort for everyone in the lab.
- Designed for safety. The lock button prevents accidental speed changes, and the motor's overload sensing technology simply shuts off stirring before an overload condition occurs to protect the sample.
Specifications
| Brand Name | Ohaus |
| Application | Laboratory |
Additional Information
| Min. Order Quantity | 10 Piece |
-
e-A51ST020
Speed Range : 30 rpm – 2000 rpm
Capacity : 25 L
Sample Viscosity (mPa s) : maximum 10,000
Torque (max) : 20 Ncm
Chuck Range (Diameter) : 1-13 mm
Shaft Pass-Through (Diameter) : up to 8.5 mm
Control : Digital
Dimensions : 9.3 in x 11.2 in x 3.5 in (235 mm x 285 mm x 90 mm) (LxHxW)
Display : LED Display
Function : Stirring
IP rating : IP 54
Net Weight : 9 lb (4.1 kg)
Power : 115 / 230 VAC
Power Consumption : 190 W
Safety Certification : cNemkous
Speed Accuracy : ±1 rpm
Speed Range : 30 rpm ; 2,000 rpm
Timer : 1 minute – 99 hours, 59 minutes
Working Environment : 41°F – 104°F, 80%RH, non-condensing (5°C – 40°C, 80% RH, Non-condensing)
-
e-A51ST040
Speed Range : 30 rpm – 2000 rpm
Capacity : 25 L
Sample Viscosity (mPa s) : maximum 25,000
Torque (max) : 40 Ncm
Chuck Range (Diameter) : 1-13 mm
Shaft Pass-Through (Diameter) : up to 8.5 mm
Control : Digital
Dimensions : 9.3 in x 11.2 in x 3.5 in (235 mm x 285 mm x 90 mm) (LxHxW)
Display : LED Display
Function : Stirring
IP rating : IP 54
Net Weight : 9 lb (4.1 kg)
Power : 115 / 230 VAC
Power Consumption : 190 W
Safety Certification : cNemkous
Speed Accuracy : ±1 rpm
Speed Range : 30 rpm ; 2,000 rpm
Timer : 1 minute – 99 hours, 59 minutes
Working Environment : 41°F – 104°F, 80%RH, non-condensing (5°C – 40°C, 80% RH, Non-condensing)
-
e-A51ST060
Speed Range : 30 rpm – 2000 rpm
Capacity : 40 L
Sample Viscosity (mPa s) : maximum 50,000
Torque (max) : 60 Ncm
Chuck Range (Diameter) : 1-13 mm
Shaft Pass-Through (Diameter) : up to 8.5 mm
Control : Digital
Dimensions : 9.3 in x 11.2 in x 3.5 in (235 mm x 285 mm x 90 mm) (LxHxW)
Display : LED Display
Function : Stirring
IP rating : IP 54
Net Weight : 9 lb (4.1 kg)
Power : 115 / 230 VAC
Power Consumption : 190 W
Safety Certification : cNemkous
Speed Accuracy : ±1 rpm
Speed Range : 30 rpm ; 2,000 rpm
Timer : 1 minute – 99 hours, 59 minutes
Working Environment : 41°F – 104°F, 80%RH, non-condensing (5°C – 40°C, 80% RH, Non-condensing)
-
e-A51ST100
Speed Range : 30 rpm – 1300 rpm
Capacity : 100 L
Sample Viscosity (mPa s) : maximum 70,000
Torque (max) : 100 Ncm
Chuck Range (Diameter) : 1-13 mm
Shaft Pass-Through (Diameter) : up to 8.5 mm
Control : Digital
Dimensions : 9.3 in x 11.2 in x 3.5 in (235 mm x 285 mm x 90 mm) (LxHxW)
Display : LED Display
Function : Stirring
IP rating : IP 54
Net Weight : 9 lb (4.1 kg)
Power : 115 / 230 VAC
Power Consumption : 190 W
Safety Certification : cNemkous
Speed Accuracy : ±1 rpm
Speed Range : 30 rpm ; 1,300 rpm
Timer : 1 minute – 99 hours, 59 minutes
Working Environment : 41°F – 104°F, 80%RH, non-condensing (5°C – 40°C, 80% RH, Non-condensing)
-

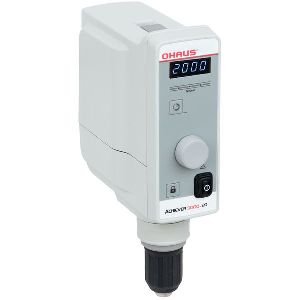

e-A51ST200
Speed Range : 6 rpm – 400 rpm; 30 rpm – 2000 rpm
Capacity : 100 L
Sample Viscosity (mPa s) : maximum 100,000
Torque (max) : 200 Ncm
Chuck Range (Diameter) : 1-13 mm
Shaft Pass-Through (Diameter) : up to 8.5 mm
Control : Digital
Dimensions : 9.3 in x 12.4 in x 3.5 in (235 mm x 315 mm x 90 mm) (LxHxW)
Display : LED Display
Function : Stirring
IP rating : IP 54
Net Weight : 10.1 lb (4.6 kg)
Power : 115 / 230 VAC
Power Consumption : 190 W
Safety Certification : cNemkous
Speed Accuracy : ±1 rpm
Speed Range : 6 rpm ; 400 rpm ; 30 rpm ; 2,000 rpm
Timer : 1 minute – 99 hours, 59 minutes
Working Environment : 41°F – 104°F, 80%RH, non-condensing (5°C – 40°C, 80% RH, Non-condensing)
