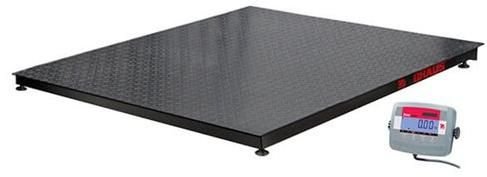

Ohaus VE Series Floor Scale
|
|
Economical Painted Steel Floor Scales for Basic Industrial Applications
The VE Series of Floor scales are the right choice for your basic dry weighing needs in industrial and commercial applications. Coupled with corresponding ramps, mounting accessories and T31P indicator, the VE Series offer a unique combination of value, quality and dependability that your company can rely on.
Features:
- The VE is ruggedly constructed and includes an epoxy painted steel frame, an ABS plastic indicator, IP65 sealed stainless steel junction box and IP67 sealed load cells.
- With a rechargeable lead acid battery included with each VE, position the floor scale freely in the workspace, without having to be forced to work near an outlet.
- Painted steel ramps are available to be added to any VE platform, which provides bottom support ribs that prevent the platform from bending under heavy loads.
Specifications
| Application | Industrial |
| Brand Name | Ohaus |
Additional Information
| Min. Order Quantity | 10 Piece |
-

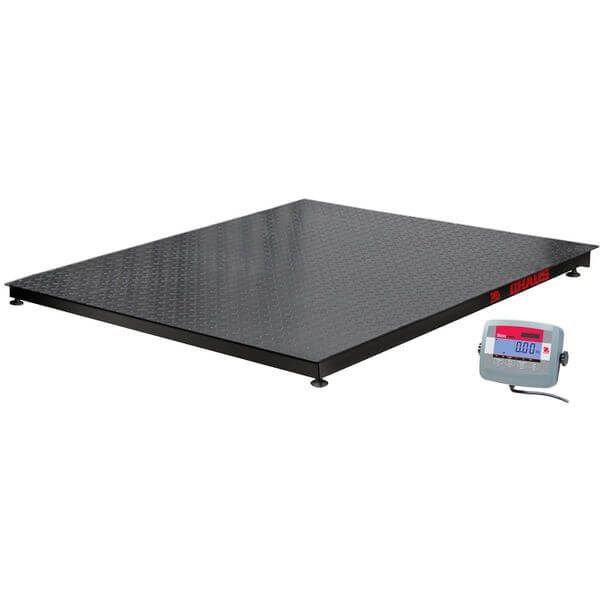

VE1500S31P
Maximum Capacity : 1,500 kg
Readability : 0.5 kg
Readability (Certified) : 0.5 kg
Platform Size : 1,000 mm x 1,000 mm
Battery Life : 100 Hours with Rechargeable Battery
Communication : RS232 (Included)
Dimensions : 39.4 in x 3.5 in x 60 in (1,000 mm x 90 mm x 1,000 mm) (LxHxW)
Display : LCD with white LED backlight
Legal for Trade : EC Type Approvable
Net Weight : 85 kg
Outputs : Not applicable
Platform Construction : Painted Steel Diamond Plate
Power : Rechargeable Battery (Included); AC Adapter (Included)
Protection Rating : Not applicable
Tare Range : To capacity by subtraction
Units of Measurement : Gram; Kilogram; Pound; Ounce; Pound:Ounce
Working Environment : 14°F – 104°F, 85%RH, non-condensing (-10°C – 40°C, 85%RH, non-condensing)
-

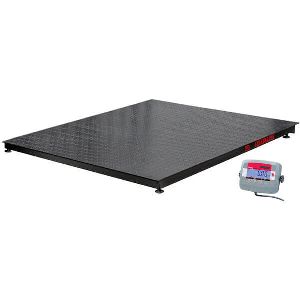

VE1500R31P
Maximum Capacity : 1,500 kg
Readability : 0.5 kg
Readability (Certified) : 0.5 kg
Platform Size : 1,250 mm x 1,250 mm
Battery Life : 100 Hours with Rechargeable Battery
Communication : RS232 (Included)
Dimensions : 49.2 in x 3.5 in x 60 in (1,250 mm x 90 mm x 1,250 mm) (LxHxW)
Display : LCD with white LED backlight
Legal for Trade : EC Type Approvable
Net Weight : 125 kg
Outputs : Not applicable
Platform Construction : Painted Steel Diamond Plate
Power : Rechargeable Battery (Included); AC Adapter (Included)
Protection Rating : Not applicable
Tare Range : To capacity by subtraction
Units of Measurement : Gram; Kilogram; Pound; Ounce; Pound:Ounce
Working Environment : 14°F – 104°F, 85%RH, non-condensing (-10°C – 40°C, 85%RH, non-condensing)
-
VE1500L31P
Maximum Capacity : 1,500 kg
Readability : 0.5 kg
Readability (Certified) : 0.5 kg
Platform Size : 1,500 mm x 1,500 mm
Battery Life : 100 Hours with Rechargeable Battery
Communication : RS232 (Included)
Dimensions : 59.1 in x 3.5 in x 60 in (1,500 mm x 90 mm x 1,500 mm) (LxHxW)
Display : LCD with white LED backlight
Legal for Trade : EC Type Approvable
Net Weight : 172 kg
Outputs : Not applicable
Platform Construction : Painted Steel Diamond Plate
Power : Rechargeable Battery (Included); AC Adapter (Included)
Protection Rating : Not applicable
Tare Range : To capacity by subtraction
Units of Measurement : Gram; Kilogram; Pound; Ounce; Pound:Ounce
Working Environment : 14°F – 104°F, 85%RH, non-condensing (-10°C – 40°C, 85%RH, non-condensing)
-
VE3000R31P
Maximum Capacity : 3,000 kg
Readability : 1 kg
Readability (Certified) : 1 kg
Platform Size : 1,250 mm x 1,250 mm
Battery Life : 100 Hours with Rechargeable Battery
Communication : RS232 (Included)
Dimensions : 49.2 in x 3.5 in x 60 in (1,250 mm x 90 mm x 1,250 mm) (LxHxW)
Display : LCD with white LED backlight
Legal for Trade : EC Type Approvable
Net Weight : 125 kg
Outputs : Not applicable
Platform Construction : Painted Steel Diamond Plate
Power : Rechargeable Battery (Included); AC Adapter (Included)
Protection Rating : Not applicable
Tare Range : To capacity by subtraction
Units of Measurement : Gram; Kilogram; Pound; Ounce; Pound:Ounce
Working Environment : 14°F – 104°F, 85%RH, non-condensing (-10°C – 40°C, 85%RH, non-condensing)
-
VE3000L31P
Maximum Capacity : 3,000 kg
Readability : 1 kg
Readability (Certified) : 1 kg
Platform Size : 1,500 mm x 1,500 mm
Battery Life : 100 Hours with Rechargeable Battery
Communication : RS232 (Included)
Dimensions : 59.1 in x 3.5 in x 60 in (1,500 mm x 90 mm x 1,500 mm) (LxHxW)
Display : LCD with white LED backlight
Legal for Trade : EC Type Approvable
Net Weight : 172 kg
Outputs : Not applicable
Platform Construction : Painted Steel Diamond Plate
Power : Rechargeable Battery (Included); AC Adapter (Included)
Protection Rating : Not applicable
Tare Range : To capacity by subtraction
Units of Measurement : Gram; Kilogram; Pound; Ounce; Pound:Ounce
Environment : 14°F – 104°F, 85%RH, non-condensing (-10°C – 40°C, 85%RH, non-condensing)
