Ohaus Rocking and Waving Shaker
|
|
Reliable Rocking and Waving Shakers with Simple Adjustments for Tilt Angle and Speed
OHAUS Rocking and Waving Shakers are innovatively designed for use in a wide range of lab applications. Rocking Shakers provide controlled seesaw-like motion, while Waving Shakers offer a smooth, low-foaming, 3D wave motion. Available in microprocessor-controlled digital models and economical non-digital models. All models include a non-slip mat, and most models are available with a stacking tray option to easily double the capacity.
Features:
- Electronic control allows simple tilt angle and speed adjustments while the unit is still running to achieve optimal mixing
- Achieve reproducible results you can trust with digital models. Precisely adjust the tilt angle in 1° increments with variable speed down to 1 rpm with intuitive touchpad controls.
- Optimal speed ramping feature slowly increases speed to desired setpoint to avoid splashing. Smooth rocking or waving motion is maintained with state-of- the-art motor and electronics.
Specifications
| Brand Name | Ohaus |
| Application | Laboratory |
Additional Information
| Min. Order Quantity | 10 Piece |
-
SHRK07AL1
Motion : Rocking, 0 – 15°
Capacity : 7.3 kg
Speed Range : 1 rpm – 75 rpm
Tray Size : 14 in x 11 in (35.6 cm x 27.9 cm)
Control : Analog
Drive System : Stepper Motor
Dimensions : 16.8 in x 5.5 in x 11 in (42.5 cm x 14 cm x 27.9 cm) (LxHxW)
Net Weight : 14.6 lb (6.6 kg)
Power : 230V, 0.065A, 50/60Hz
Power Consumption : 15 W
Safety Certification : CE; TUV
Speed Range : 1 rpm – 75 rpm
Tilt Angle : 0 – 15°
Timer : 1 minute – 120 minutes
Tray Construction : Aluminum
Working Environment : 14°F – 140°F, 80%RH, non-condensing (-10°C – 60°C, 80%RH, non-condensing)
-

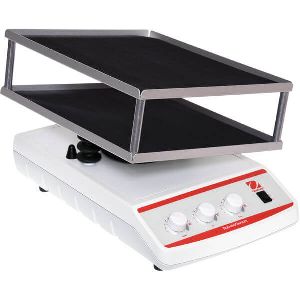

SHRK07AL2
Motion : Rocking, 0 – 15°
Capacity : 7.3 kg
Speed Range : 1 rpm – 75 rpm
Tray Size : 14 in x 11 in (35.6 cm x 27.9 cm)
Control : Analog
Drive System : Stepper Motor
Dimensions : 16.8 in x 5.5 in x 11 in (42.5 cm x 14 cm x 27.9 cm) (LxHxW)
Net Weight : 14.6 lb (6.6 kg)
Power : 230V, 0.065A, 50/60Hz
Power Consumption : 15 W
Safety Certification : CE; TUV
Speed Range : 1 rpm – 75 rpm
Tilt Angle : 0 – 15°
Timer : 1 minute – 120 minutes
Tray Construction : Aluminum
Working Environment : 14°F – 140°F, 80%RH, non-condensing (-10°C – 60°C, 80%RH, non-condensing)
-
SHRK04DG
Motion : Rocking, 0 – 15°
Capacity : 4.5 kg
Speed Range : 1 rpm – 50 rpm
Tray Size : 12.75 in x 10 in (32.4 cm x 25.4 cm)
Control : Digital
Drive System : Stepper Motor
Dimensions : 16.8 in x 5.5 in x 10 in (42.5 cm x 14 cm x 25.4 cm) (LxHxW)
Net Weight : 6.6 lb (3 kg)
Power : 230V, 5A, 50/60Hz
Power Consumption : 25 W
Safety Certification : CE; TUV
Speed Range : 1 rpm – 50 rpm
Tilt Angle : 0 – 15°
Timer : 1 second – 160 hours
Tray Construction : Aluminum
Working Environment : 14°F – 140°F, 80%RH, non-condensing (-10°C – 60°C, 80%RH, non-condensing)
-
SHWV02AL
Motion : Waving, 0 – 16°
Capacity : 2.3 kg
Speed Range : 1 rpm – 75 rpm
Tray Size : 14 in x 11 in (35.6 cm x 27.9 cm)
Control : Analog
Drive System : Stepper Motor
Dimensions : 16.8 in x 6.5 in x 11 in (42.5 cm x 16.5 cm x 27.9 cm) (LxHxW)
Net Weight : 14.6 lb (6.6 kg)
Power : 230V, 0.65A, 50/60Hz
Power Consumption : 15 W
Safety Certification : CE; TUV
Speed Range : 1 rpm – 75 rpm
Tilt Angle : 0 – 16°
Timer : 1 second – 160 hours
Tray Construction : Aluminum
Working Environment : 14°F – 140°F, 80%RH, non-condensing (-10°C – 60°C, 80%RH, non-condensing)
-
SHWV02DG
Motion : Waving, 0 – 20°
Capacity : 2.3 kg
Speed Range : 1 rpm – 30 rpm
Tray Size : 11.75 in x 8.75 in (29.9 cm x 22.2 cm)
Control : Digital
Drive System : Stepper Motor
Dimensions : 17 in x 6 in x 11 in (43.2 cm x 15.2 cm x 27.9 cm) (LxHxW)
Net Weight : 15.2 lb (6.9 kg)
Power : 230V, 5A, 50/60Hz
Power Consumption : 25 W
Safety Certification : CE; TUV
Speed Accuracy : ±1 rpm
Speed Range : 1 rpm – 30 rpm
Tilt Angle : 0 – 20°
Timer : 1 second – 160 hours
Tray Construction : Aluminum
Working Environment : 14°F – 140°F, 80%RH, non-condensing (-10°C – 60°C, 80%RH, non-condensing)
