Ohaus Defender 5000 Stainless Steel Bench Scale Base



Durable Bases for the Most Demanding of Industrial Applications

The OHAUS next generation Defender 5000 W Series base offers durability for the most demanding of industrial applications. The W series features moisture-protected single-point load cells, stainless steel construction, non-slip rubber adjustable feet, removable stainless steel weighing pans and integrated leveling bubbles. Maximum non-approved resolution of 1:15,000d meets the needs of industrial weighing applications that require extreme accuracy.



Features:

  • The W series features a stainless steel platform, frame and IP67 load cell to withstand harsh industrial environments.
  • The Defender 5000 bases are equipped with an EasyConnect cable, which allows instant configuration with Defender 5000 (TD52) indicators, speeding up installation.
  • Defender 5000 bases are NTEP-certified and Measurement Canada approved. These bases also carry OIML and EC Type approvals, which make them ideal for legal-for-trade use.

Specifications

Brand Name Ohaus
Usage Industrial

Additional Information

Min. Order Quantity 10 Piece


  • D6WQDR

    Maximum Capacity : 3 kg/6 kg

    Readability : 0.2 g; 0.5 g

    Platform Size : 305 mm x 305 mm

    Legal for Trade : EC Type Approvable; OIML

    Protection Rating : IP67

    Dimensions : 338 mm x 99 mm x 305 mm (LxHxW)

    Net Weight : 6 kg

    Platform Construction : Stainless Steel

    Working Environment : -10°C – 40°C, 80%RH, non-condensing

  • D15WQDR

    Maximum Capacity : 6 kg/15 kg

    Readability : 0.5 g; 1 g

    Platform Size : 305 mm x 305 mm

    Legal for Trade : EC Type Approvable; OIML

    Protection Rating : IP67

    Dimensions : 338 mm x 99 mm x 305 mm (LxHxW)

    Net Weight : 6 kg

    Platform Construction : Stainless Steel

    Working Environment : -10°C – 40°C, 80%RH, non-condensing

  • D15WQDL

    Maximum Capacity : 6 kg/15 kg

    Readability : 0.5 g; 1 g

    Platform Size : 400 mm x 400 mm

    Legal for Trade : EC Type Approvable; OIML

    Protection Rating : IP67

    Dimensions : 423 mm x 120 mm x 400 mm (LxHxW)

    Net Weight : 8.6 kg

    Platform Construction : Stainless Steel

    Working Environment : -10°C – 40°C, 80%RH, non-condensing

  • D30WQDL

    Maximum Capacity : 15 kg/30 kg

    Readability : 1 g; 2 g

    Platform Size : 400 mm x 400 mm

    Legal for Trade : EC Type Approvable; OIML

    Protection Rating : IP67

    Dimensions : 423 mm x 120 mm x 400 mm (LxHxW)

    Net Weight : 8.6 kg

    Platform Construction : Stainless Steel

    Working Environment : -10°C – 40°C, 80%RH, non-condensing

  • D60WQDL

    Maximum Capacity : 30 kg/60 kg

    Readability : 2 g; 5 g

    Platform Size : 400 mm x 400 mm

    Legal for Trade : EC Type Approvable; OIML

    Protection Rating : IP67

    Dimensions : 423 mm x 120 mm x 400 mm (LxHxW)

    Net Weight : 8.6 kg

    Platform Construction : Stainless Steel

    Working Environment : -10°C – 40°C, 80%RH, non-condensing

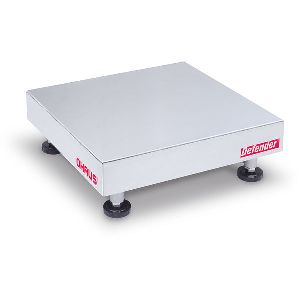

  • D60WQDX

    Maximum Capacity : 30 kg/60 kg

    Readability : 2 g; 5 g

    Platform Size : 500 mm x 500 mm

    Legal for Trade : EC Type Approvable; OIML

    Protection Rating : IP67

    Dimensions : 523 mm x 120 mm x 500 mm (LxHxW)

    Net Weight : 17 kg

    Platform Construction : Stainless Steel

    Working Environment : -10°C – 40°C, 80%RH, non-condensing

  • D60WQDV

    Maximum Capacity : 30 kg/60 kg

    Readability : 2 g; 5 g

    Platform Size : 610 mm x 610 mm

    Legal for Trade : EC Type Approvable; OIML

    Protection Rating : IP67

    Dimensions : 633 mm x 130 mm x 610 mm (LxHxW)

    Net Weight : 31 kg

    Platform Construction : Stainless Steel

    Working Environment : -10°C – 40°C, 80%RH, non-condensing

  • D150WQDX

    Maximum Capacity : 60 kg/150 kg

    Readability : 5 g; 10 g

    Platform Size : 500 mm x 500 mm

    Legal for Trade : EC Type Approvable; OIML

    Protection Rating : IP67

    Dimensions : 523 mm x 120 mm x 500 mm (LxHxW)

    Net Weight : 17 kg

    Platform Construction : Stainless Steel

    Working Environment : -10°C – 40°C, 80%RH, non-condensing

  • D150WQDV

    Maximum Capacity : 60 kg/150 kg

    Readability : 5 g; 10 g

    Platform Size : 610 mm x 610 mm

    Legal for Trade : EC Type Approvable; OIML

    Protection Rating : IP67

    Dimensions : 633 mm x 130 mm x 610 mm (LxHxW)

    Net Weight : 31 kg

    Platform Construction : Stainless Steel

    Working Environment : -10°C – 40°C, 80%RH, non-condensing

  • D150WTDV

    Maximum Capacity : 60 kg/150 kg

    Readability : 5 g; 10 g

    Platform Size : 800 mm x 600 mm

    Legal for Trade : EC Type Approvable; OIML

    Protection Rating : IP67

    Dimensions : 822 mm x 132 mm x 600 mm (LxHxW)

    Net Weight : 39 kg

    Platform Construction : Stainless Steel

    Working Environment : -10°C – 40°C, 80%RH, non-condensing

  • D300WQDV

    Maximum Capacity : 150 kg/300 kg

    Readability : 10 g; 20 g

    Platform Size : 610 mm x 610 mm

    Legal for Trade : EC Type Approvable; OIML

    Protection Rating : IP67

    Dimensions : 633 mm x 130 mm x 610 mm (LxHxW)

    Net Weight : 31 kg

    Platform Construction : Stainless Steel

    Working Environment : -10°C – 40°C, 80%RH, non-condensing

  • D300WTDV

    Maximum Capacity : 150 kg/300 kg

    Readability : 10 g; 20 g

    Platform Size : 800 mm x 600 mm

    Legal for Trade : EC Type Approvable; OIML

    Protection Rating : IP67

    Dimensions : 822 mm x 132 mm x 600 mm (LxHxW)

    Net Weight : 39 kg

    Platform Construction : Stainless Steel

    Working Environment : -10°C – 40°C, 80%RH, non-condensing

  • D600WTDV

    Maximum Capacity : 300 kg/600 kg

    Readability : 20 g; 50 g

    Platform Size : 800 mm x 600 mm

    Legal for Trade : EC Type Approvable; OIML

    Protection Rating : IP67

    Dimensions : 822 mm x 132 mm x 600 mm (LxHxW)

    Net Weight : 39 kg

    Platform Construction : Stainless Steel

    Working Environment : -10°C – 40°C, 80%RH, non-condensing
