Ohaus Defender 6000 Washdown-i-D61XW Bench Scale
|
|
Advanced IP68/IP69k Washdown Bench Scale
The Defender 6000 Series Extreme Washdown Bench Scale is specifically designed for food, chemical and pharmaceutical applications, including production and packaging. Defender 6000 handles the most demanding applications with 316 stainless steel platform and frame, and hermetically-sealed stainless steel IP69K load cell. Defender 6000 meets metrological approvals, NSF listing, and supporting HACCP systems.
Features:
- Defender 6000 stands up to harsh cleaning in processing and packaging environments with IP68 immersion/ IP69K washdown protection, 316 stainless steel base and hermetically-sealed load cell.
- Durable Defender 6000 is NSF certified, supporting HACCP systems with a 316 stainless steel base and sturdy indicator providing corrosion protection in food, chemical processing, and packaging.
- Versatile scales include fast weight display and multiple software modes to meet food, chemical processing, and packaging needs.
Specifications
| Application | Industrial |
| Brand Name | Ohaus |
Additional Information
| Min. Order Quantity | 10 Piece |
Accessories
| OHAUS# | Description |
| 30424410 | Column Kit, 35 cm, CS, D52 |
| 30424411 | Column Kit, 68 cm, CS, D52 |
| 30424412 | Column Kit, 98 cm, CS, D52 |
| 30424413 | Column Kit, 35 cm, SST, D52 |
| 30424414 | Column Kit, 68 cm, SST, D52 |
| 30424415 | Column Kit, 98 cm, SST, D52 |
| 30424024 | Front Mount Kit, D52 |
| 30424025 | Print Holder Kit, D52 |
| 30424409 | LC Extension Cable, 9 meters, D521 |
| 30429931 | Load Cell Cable Adapter Kit, to D52 Base |
| 30372146 | Wheel Kit, Defender Series (for bases up to 300 kg)1 |
-
D61XWE3K1S6
Maximum Capacity : 6 lb (3 kg)
Readability : 0.001 lb (0.5 g)
Readability (Certified) : 1 g
Platform Size : 250 mm x 250 mm
Legal for Trade : EC Type Approvable; OIML
Power : Rechargeable Battery (Not Included); AC Power (Included)
Battery Life : Not Applicable
Communication : Ethernet (Available as an Accessory); 2nd RS232/RS485/USB (available as an accessory); RS232; USB Host; WiFi/Bluetooth (available as an accessory)
Dimensions : 376 mm x 518 mm x 250 mm (LxHxW)
Display : 7-Segment white LED, height 20mm + 3 color checkweigh dot matrix LED
Net Weight : 10.5 kg
Outputs : 4-20 mA; 0–10V; 2 In/4 Out digital I/O
Platform Construction : Stainless Steel
Protection Rating : IP69k; IP68
Second Scale Input : Not Applicable
Tare Range : To capacity by subtraction
Units of Measurement : Gram; Kilogram; Pound; Ounce; Pound: Ounce
Working Environment : 14°F – 104°F, 80%RH, non-condensing (-10°C – 40°C, 80%RH, non-condensing)
-

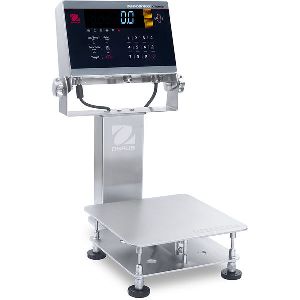

D61XWE6K1S6
Maximum Capacity : 12 lb (6 kg)
Readability : 0.001 lb (0.5 g)
Readability (Certified) : 2 g
Platform Size : 250 mm x 250 mm
Legal for Trade : EC Type Approvable; OIML
Power : Rechargeable Battery (Not Included); AC Power (Included)
Battery Life : Not Applicable
Communication : Ethernet (Available as an Accessory); 2nd RS232/RS485/USB (Available as an Accessory); RS232; USB Host; WiFi/Bluetooth (Available as an Accessory)
Dimensions : 376 mm x 518 mm x 250 mm (LxHxW)
Display : 7-Segment white LED, height 20mm + 3 color checkweigh dot matrix LED
Net Weight : 10.5 kg
Outputs : 4 – 20mA; 0 – 10 V; 3 In/4 Out digital I/O
Platform Construction : Stainless Steel
Protection Rating : IP69k; IP68
Second Scale Input : Not Applicable
Tare Range : To capacity by subtraction
Units of Measurement : Gram; Kilogram; Pound; Ounce; Pound:Ounce
Working Environment : 14°F – 104°F, 80%RH, non-condensing (-10°C – 40°C, 80%RH, non-condensing)
-
D61XWE15K1R6
Maximum Capacity : 30 lb (15 kg)
Readability : 0.02 lb (1 g)
Readability (Certified) : 5 g
Platform Size : 300 mm x 300 mm
Legal for Trade : EC Type Approvable; OIML
Power : Rechargeable Battery (Not Included); AC Power (Included)
Battery Life : Not Applicable
Communication : Ethernet (Available as an Accessory); 2nd RS232/RS485/USB (Available as an Accessory); RS232; USB Host; WiFi/Bluetooth (Available as an Accessory)
Dimensions : 427 mm x 518 mm x 300 mm (LxHxW)
Display : 7-Segment white LED, height 20mm + 3 color checkweigh dot matrix LED
Net Weight : 11.7 kg
Outputs : 4 – 20mA; 0 – 10 V; 3 In/4 Out digital I/O
Platform Construction : Stainless Steel
Protection Rating : IP69k; IP68
Second Scale Input : Not Applicable
Tare Range : To capacity by subtraction
Units of Measurement : Gram; Kilogram; Pound; Ounce; Pound:Ounce
Working Environment : 14°F – 104°F, 80%RH, non-condensing (-10°C – 40°C, 80%RH, non-condensing)
-
D61XWE30K1R6
Maximum Capacity : 60 lb (30 kg)
Readability : 0.005 lb (2 g)
Readability (Certified) : 10 g
Platform Size : 300 mm x 300 mm
Legal for Trade : EC Type Approvable; OIML
Power : Rechargeable Battery (Not Included); AC Power (Included)
Battery Life : Not Applicable
Communication : Ethernet (Available as an Accessory); 2nd RS232/RS485/USB (Available as an Accessory); RS232; USB Host; WiFi/Bluetooth (Available as an Accessory)
Dimensions : 427 mm x 518 mm x 300 mm (LxHxW)
Display : 7-Segment white LED, height 20mm + 3 color checkweigh dot matrix LED
Net Weight : 11.7 kg
Outputs : 4 – 20mA; 0 – 10 V; 3 In/4 Out digital I/O
Platform Construction : Stainless Steel
Protection Rating : IP69k; IP68
Second Scale Input : Not Applicable
Tare Range : To capacity by subtraction
Units of Measurement : Gram; Kilogram; Pound; Ounce; Pound:Ounce
Working Environment : 14°F – 104°F, 80%RH, non-condensing (-10°C – 40°C, 80%RH, non-condensing)
-

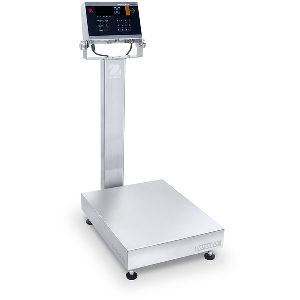

D61XWE60K1L7
Maximum Capacity : 120 lb (60 kg)
Readability : 0.01 lb (5 g)
Readability (Certified) : 20 g
Platform Size : 500 mm x 400 mm
Legal for Trade : EC Type Approvable; OIML
Power : Rechargeable Battery (Not Included); AC Power (Included)
Battery Life : Not Applicable
Communication : Ethernet (Available as an Accessory); 2nd RS232/RS485/USB (available as an accessory); RS232; USB Host; WiFi/Bluetooth (available as an accessory)
Dimensions : 660 mm x 926 mm x 400 mm (LxHxW)
Display : 7-Segment white LED, height 20mm + 3 color checkweigh dot matrix LED
Net Weight : 22 kg
Outputs : 4-20 mA; 0–10V; 2 In/4 Out digital I/O
Platform Construction : Stainless Steel
Protection Rating : IP69k; IP68
Second Scale Input : Not Applicable
Tare Range : To capacity by subtraction
Units of Measurement : Gram; Kilogram; Pound; Ounce; Pound: Ounce
Working Environment : 14°F – 104°F, 80%RH, non-condensing (-10°C – 40°C, 80%RH, non-condensing)
-
D61XWE150K1L7
Maximum Capacity : 300 lb (150 kg)
Readability : 0.02 lb (10 g)
Readability (Certified) : 0.1 lb (50 g)
Platform Size : 19.7 in x 15.7 in (500 mm x 400 mm)
Legal for Trade : EC Type Approvable; OIML
Power : Rechargeable Battery (Not Included); AC Power (Included)
Battery Life : Not Applicable
Communication : Ethernet (Available as an Accessory); 2nd RS232/RS485/USB (Available as an Accessory); RS232; USB Host; WiFi/Bluetooth (Available as an Accessory)
Dimensions : 26 in x 33.6 in x 15.7 in (660 mm x 926 mm x 400 mm) (LxHxW)
Display : 7-Segment white LED, height 20mm + 3 color checkweigh dot matrix LED
Net Weight : 51.2 lb (23.2 kg)
Outputs : 4 – 20mA; 0 – 10 V; 3 In/4 Out digital I/O
Platform Construction : Stainless Steel
Protection Rating : IP69k; IP68
Second Scale Input : Not Applicable
Tare Range : To capacity by subtraction
Units of Measurement : Gram; Kilogram; Pound; Ounce; Pound:Ounce
Working Environment : 14°F – 104°F, 80%RH, non-condensing (-10°C – 40°C, 80%RH, non-condensing)
