Ohaus PJX Carat Series Jewelry Scale



Modern Compact Jewelry Balances for Accurate Weighing of Precious Metals and Stones

The PJX Series offers a range of Jewelry Balances for weighing precious metals and stones in a variety of capacities and readabilities. The PJX Series is OIMLapproved and ideal for legal-for-trade applications. The PJX features an auxiliary display that can be easily connected to provide simultaneous viewing of results for both trader and customer. Select models come with a built-in internal adjustment system.



Features:

  • The PJX features a bright backlit LCD which displays results clearly. An auxiliary display can also be connected to allow both customer and trader to view weighing results simultaneously.
  • The PJX Series comes in a modern compact design, which is designed with saving space in mind. Additionally, keeping the draftshield lowered will help to get more stable weighing results.
  • Select PJX models come with a built-in internal adjustment system, which calibrates the balance automatically, ensuring weighing accuracy at all times.

Specifications

Application Industrial
Brand Name Ohaus

Additional Information

Min. Order Quantity 10 Piece


  • PJX203

    Maximum Capacity : 40 g/200 ct

    Readability : 0.0001 g; 0.001 ct

    Pan Size : 3.5 in (90 mm)

    Battery Life : Not applicable

    Communication : RS232

    Auxiliary Display Model : Available as an Accessory

    Dimensions : 321 mm x 274 mm x 209 mm (LxHxW)

    Display : LCD with backlight

    Internal Calibration : InCal™ - Semi Automatic

    In-Use Covernuse cover : Included

    Legal for Trade : Not applicable

    Linearity ± : 0.0002 g

    Net Weight : 10 lb (4.5 kg)

    Pan Construction : Stainless Steel

    Power : AC Adapter (Included)

    Repeatability, typical : 0.0001 g

    Stabilization Time : 3 s

    Tare Range : To capacity by subtraction

    Units of Measurement : Milligram; Ounce Troy; Pennyweight; Taiwan Tael; Gram; Grain; Carat; Ounce; Custom

    Working Environment : operability guaranteed between 41°F and 104°F; 50°F – 86°F, 80%RH, non-condensing (operability guaranteed between 5°C and 40°C; 10°C – 30°C, 80%RH, non-condensing)

  • PJX203/E

    Maximum Capacity : 40 g/200 ct

    Readability : 0.0001 g; 0.001 ct

    Pan Size : 3.5 in (90 mm)

    Battery Life : Not applicable

    Communication : RS232

    Auxiliary Display Model : Available as an Accessory

    Dimensions : 321 mm x 274 mm x 209 mm (LxHxW)

    Display : LCD with backlight

    Internal Calibration : Not Applicable

    In-Use Covernuse cover : Included

    Legal for Trade : Not applicable

    Linearity ± : 0.0002 g

    Net Weight : 10 lb (4.5 kg)

    Pan Construction : Stainless Steel

    Power : AC Adapter (Included)

    Repeatability, typical : 0.0001 g

    Stabilization Time : 3 s

    Tare Range : To capacity by subtraction

    Units of Measurement : Milligram; Ounce Troy; Pennyweight; Taiwan Tael; Gram; Grain; Carat; Ounce; Custom

    Working Environment : operability guaranteed between 41°F and 104°F; 50°F – 86°F, 80%RH, non-condensing (operability guaranteed between 5°C and 40°C; 10°C – 30°C, 80%RH, non-condensing)

  • PJX803

    Maximum Capacity : 160 g/800 ct

    Readability : 0.0001 g; 0.001 ct

    Pan Size : 3.5 in (90 mm)

    Battery Life : Not applicable

    Communication : RS232

    Auxiliary Display Model : Available as an Accessory

    Dimensions : 321 mm x 274 mm x 209 mm (LxHxW)

    Display : LCD with backlight

    Internal Calibration : InCal™ - Semi Automatic

    In-Use Covernuse cover : Included

    Legal for Trade : Not applicable

    Linearity ± : 0.0002 g

    Net Weight : 10 lb (4.5 kg)

    Pan Construction : Stainless Steel

    Power : AC Adapter (Included)

    Repeatability, typical : 0.0001 g

    Stabilization Time : 3 s

    Tare Range : To capacity by subtraction

    Units of Measurement : Milligram; Ounce Troy; Pennyweight; Taiwan Tael; Gram; Grain; Carat; Ounce; Custom

    Working Environment : operability guaranteed between 41°F and 104°F; 50°F – 86°F, 80%RH, non-condensing (operability guaranteed between 5°C and 40°C; 10°C – 30°C, 80%RH, non-condensing)

  • PJX803/E

    Maximum Capacity : 160 g/800 ct

    Readability : 0.0001 g; 0.001 ct

    Pan Size : 3.5 in (90 mm)

    Battery Life : Not applicable

    Communication : RS232

    Auxiliary Display Model : Available as an Accessory

    Dimensions : 321 mm x 274 mm x 209 mm (LxHxW)

    Display : LCD with backlight

    Internal Calibration : Not Applicable

    In-Use Covernuse cover : Included

    Legal for Trade : Not applicable

    Linearity ± : 0.0002 g

    Net Weight : 10 lb (4.5 kg)

    Pan Construction : Stainless Steel

    Power : AC Adapter (Included)

    Repeatability, typical : 0.0001 g

    Stabilization Time : 3 s

    Tare Range : To capacity by subtraction

    Units of Measurement : Milligram; Ounce Troy; Pennyweight; Taiwan Tael; Gram; Grain; Carat; Ounce; Custom

    Working Environment : operability guaranteed between 41°F and 104°F; 50°F – 86°F, 80%RH, non-condensing (operability guaranteed between 5°C and 40°C; 10°C – 30°C, 80%RH, non-condensing)

  • PJX1203

    Maximum Capacity : 240 g/1,200 ct

    Readability : 0.0001 g; 0.001 ct

    Pan Size : 3.5 in (90 mm)

    Battery Life : Not applicable

    Communication : RS232

    Auxiliary Display Model : Available as an Accessory

    Dimensions : 321 mm x 274 mm x 209 mm (LxHxW)

    Display : LCD with backlight

    Internal Calibration : InCal™ - Semi Automatic

    In-Use Covernuse cover : Included

    Legal for Trade : Not applicable

    Linearity ± : 0.0002 g

    Net Weight : 10 lb (4.5 kg)

    Pan Construction : Stainless Steel

    Power : AC Adapter (Included)

    Repeatability, typical : 0.0001 g

    Stabilization Time : 3 s

    Tare Range : To capacity by subtraction

    Units of Measurement : Milligram; Ounce Troy; Pennyweight; Taiwan Tael; Gram; Grain; Carat; Ounce; Custom

    Working Environment : operability guaranteed between 41°F and 104°F; 50°F – 86°F, 80%RH, non-condensing (operability guaranteed between 5°C and 40°C; 10°C – 30°C, 80%RH, non-condensing)

  • PJX1203/E

    Maximum Capacity : 240 g/1,200 ct

    Readability : 0.0001 g; 0.001 ct

    Pan Size : 3.5 in (90 mm)

    Battery Life : Not applicable

    Communication : RS232

    Auxiliary Display Model : Available as an Accessory

    Dimensions : 321 mm x 274 mm x 209 mm (LxHxW)

    Display : LCD with backlight

    Internal Calibration : Not Applicable

    In-Use Covernuse cover : Included

    Legal for Trade : Not applicable

    Linearity ± : 0.0002 g

    Net Weight : 10 lb (4.5 kg)

    Pan Construction : Stainless Steel

    Power : AC Adapter (Included)

    Repeatability, typical : 0.0001 g

    Stabilization Time : 3 s

    Tare Range : To capacity by subtraction

    Units of Measurement : Milligram; Ounce Troy; Pennyweight; Taiwan Tael; Gram; Grain; Carat; Ounce; Custom

    Working Environment : operability guaranteed between 41°F and 104°F; 50°F – 86°F, 80%RH, non-condensing (operability guaranteed between 5°C and 40°C; 10°C – 30°C, 80%RH, non-condensing)

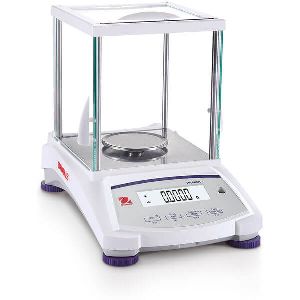

  • PJX1603

    Maximum Capacity : 320 g/1,600 ct

    Readability : 0.001 g; 0.005 ct

    Pan Size : 4.7 in (120 mm)

    Battery Life : Not applicable

    Communication : RS232

    Auxiliary Display Model : Available as an Accessory

    Dimensions : 321 mm x 274 mm x 209 mm (LxHxW)

    Display : LCD with backlight

    Internal Calibration : InCal™ - Semi Automatic

    In-Use Covernuse cover : Included

    Legal for Trade : Not applicable

    Linearity ± : 0.002 g

    Net Weight : 10 lb (4.5 kg)

    Pan Construction : Stainless Steel

    Power : AC Adapter (Included)

    Repeatability, typical : 0.001 g

    Stabilization Time : 2 s

    Tare Range : To capacity by subtraction

    Units of Measurement : Milligram; Pennyweight; Ounce Troy; Gram; Kilogram; Pound; Ounce; Carat

    Working Environment : operability guaranteed between 41°F and 104°F; 50°F – 86°F, 80%RH, non-condensing (operability guaranteed between 5°C and 40°C; 10°C – 30°C, 80%RH, non-condensing)

  • PJX1603/E

    Maximum Capacity : 320 g/1,600 ct

    Readability : 0.001 g; 0.005 ct

    Pan Size : 4.7 in (120 mm)

    Battery Life : Not applicable

    Communication : RS232

    Auxiliary Display Model : Available as an Accessory

    Dimensions : 321 mm x 274 mm x 209 mm (LxHxW)

    Display : LCD with backlight

    Internal Calibration : Not Applicable

    In-Use Covernuse cover : Included

    Legal for Trade : Not applicable

    Linearity ± : 0.002 g

    Net Weight : 10 lb (4.5 kg)

    Pan Construction : Stainless Steel

    Power : AC Adapter (Included)

    Repeatability, typical : 0.001 g

    Stabilization Time : 2 s

    Tare Range : To capacity by subtraction

    Units of Measurement : Milligram; Pennyweight; Ounce Troy; Gram; Kilogram; Pound; Ounce; Carat

    Working Environment : operability guaranteed between 41°F and 104°F; 50°F – 86°F, 80%RH, non-condensing (operability guaranteed between 5°C and 40°C; 10°C – 30°C, 80%RH, non-condensing)

  • PJX2503

    Maximum Capacity : 500 g/2,500 ct

    Readability : 0.001 g; 0.005 ct

    Pan Size : 4.7 in (120 mm)

    Battery Life : Not applicable

    Communication : RS232

    Auxiliary Display Model : Available as an Accessory

    Dimensions : 321 mm x 274 mm x 209 mm (LxHxW)

    Display : LCD with backlight

    Internal Calibration : InCal™ - Semi Automatic

    In-Use Covernuse cover : Included

    Legal for Trade : Not applicable

    Linearity ± : 0.002 g

    Net Weight : 10 lb (4.5 kg)

    Pan Construction : Stainless Steel

    Power : AC Adapter (Included)

    Repeatability, typical : 0.001 g

    Stabilization Time : 2 s

    Tare Range : To capacity by subtraction

    Units of Measurement : Milligram; Pennyweight; Ounce Troy; Gram; Kilogram; Pound; Ounce; Carat

    Working Environment : operability guaranteed between 41°F and 104°F; 50°F – 86°F, 80%RH, non-condensing (operability guaranteed between 5°C and 40°C; 10°C – 30°C, 80%RH, non-condensing)

  • PJX2503/E

    Maximum Capacity : 500 g/2,500 ct

    Readability : 0.001 g; 0.005 ct

    Pan Size : 4.7 in (120 mm)

    Battery Life : Not applicable

    Communication : RS232

    Auxiliary Display Model : Available as an Accessory

    Dimensions : 321 mm x 274 mm x 209 mm (LxHxW)

    Display : LCD with backlight

    Internal Calibration : Not Applicable

    In-Use Covernuse cover : Included

    Legal for Trade : Not applicable

    Linearity ± : 0.002 g

    Net Weight : 10 lb (4.5 kg)

    Pan Construction : Stainless Steel

    Power : AC Adapter (Included)

    Repeatability, typical : 0.001 g

    Stabilization Time : 2 s

    Tare Range : To capacity by subtraction

    Units of Measurement : Milligram; Pennyweight; Ounce Troy; Gram; Kilogram; Pound; Ounce; Carat

    Working Environment : operability guaranteed between 41°F and 104°F; 50°F – 86°F, 80%RH, non-condensing (operability guaranteed between 5°C and 40°C; 10°C – 30°C, 80%RH, non-condensing)
