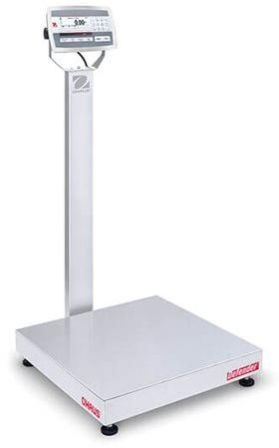

Ohaus Defender 5000 Washdown-D52 Bench Scale
|
|
Multifunctional Stainless Steel Washdown Bench Scale for Standard Industrial Applications
The OHAUS next generation Defender 5000 Series multifunctional washdown bench scale is ideal for a multitude of applications, including production, packaging, inventory and shipping. Built durably and equipped with advanced features such as maximum configurability print output, GMP/GLP data output, library/user management and multiple connectivity options - the Defender 5000 is designed to simplify demanding industrial and commercial applications.
Features:
- User-friendly model with an easy-to-use keypad, large backlit display and plain text on-screen prompts which guide you through operation.
- Durably constructed of a stainless steel platform, frame & IP68 indicator; IP67 stainless steel loadcell (NTEP/MC/OIML/EC Type single range) or aluminum load cell (OIML/EC Type dual range).
- Features common industrial modes and supports a 50,000-item library with 1,000 user profiles for easy data management. Incudes GMP/GLP with time/date for result traceability.
Specifications
| Application | Industrial |
| Brand Name | Ohaus |
Additional Information
| Min. Order Quantity | 1 Piece |
Accessories
| OHAUS# | Description |
| 30424410 | Column Kit, 35 cm, CS, D52 |
| 30424411 | Column Kit, 68 cm, CS, D52 |
| 30424412 | Column Kit, 98 cm, CS, D52 |
| 30424413 | Column Kit, 35 cm, SST, D52 |
| 30424414 | Column Kit, 68 cm, SST, D52 |
| 30424415 | Column Kit, 98 cm, SST, D52 |
| 30424024 | Front Mount Kit, D52 |
| 30424025 | Print Holder Kit, D52 |
| 30424409 | LC Extension Cable, 9 meters, D521 |
| 30429931 | Load Cell Cable Adapter Kit, to D52 Base |
| 30372146 | Wheel Kit, Defender Series (for bases up to 300 kg)1 |
-

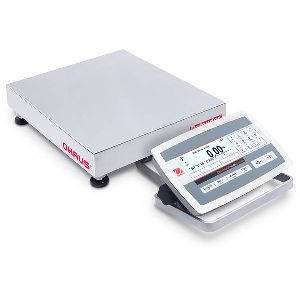

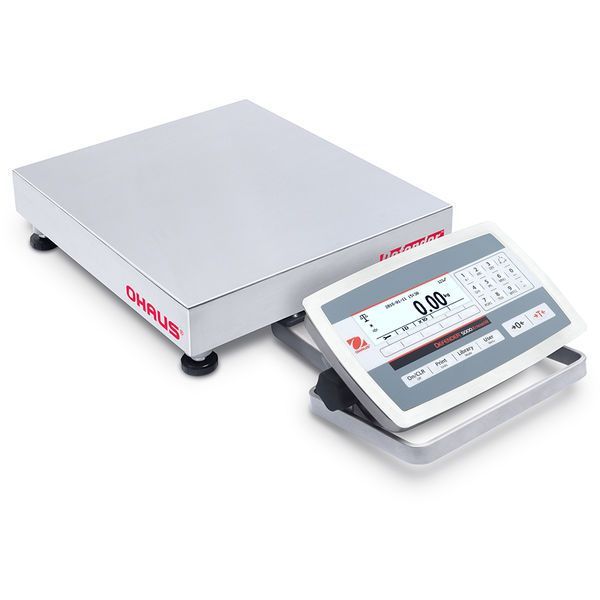

D52XW6WQDR5
Maximum Capacity : 3 kg/6 kg
Readability : 0.2 g; 0.5 g
Readability (Certified) : 1 g; 2 g
Platform Size : 305 mm x 305 mm
Legal for Trade : EC Type Approvable; OIML
Power : Rechargeable Battery (Not Included); AC Power (Included)
Battery Life : 20 Hours with Rechargeable Battery
Communication : Ethernet (Available as an Accessory); 2nd RS232/RS485/USB (available as an accessory); RS232 (Included); USB Host (Available as an Accessory); WiFi/Bluetooth (available as an accessory)
Dimensions : 588 mm x 122 mm x 305 mm (LxHxW)
Display : Dot matrix LCD with white LED backlight
Net Weight : 10 kg
Outputs : 4 - 20mA; 2 In/4 Out digital I/O
Platform Construction : Stainless Steel
Protection Rating : IP67
Second Scale Input : Not applicable
Tare Range : To capacity by subtraction
Units of Measurement : Metric Tons; Gram; Kilogram; Pound; Tonne; Custom; Ounce; Pound:Ounce
Working Environment : 14°F – 104°F, 80%RH, non-condensing (-10°C – 40°C, 80%RH, non-condensing)
-

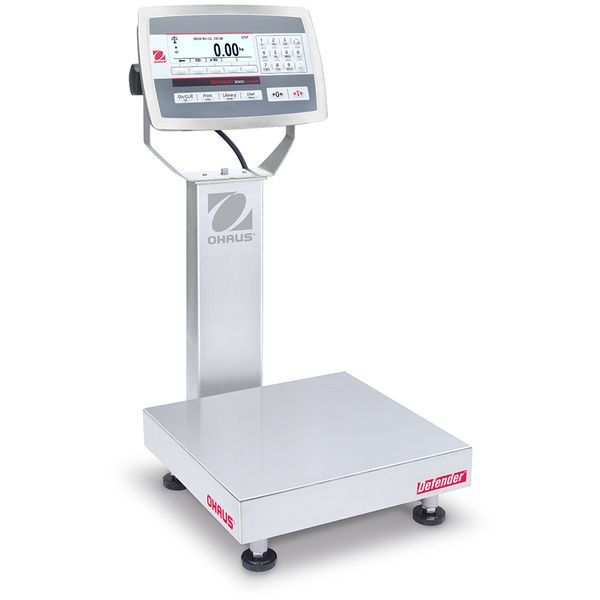

D52XW6WQDR6
Maximum Capacity : 3 kg/6 kg
Readability : 0.2 g; 0.5 g
Readability (Certified) : 1 g; 2 g
Platform Size : 305 mm x 305 mm
Legal for Trade : EC Type Approvable; OIML
Power : Rechargeable Battery (Not Included); AC Power (Included)
Battery Life : 20 Hours with Rechargeable Battery
Communication : Ethernet (Available as an Accessory); 2nd RS232/RS485/USB (available as an accessory); RS232 (Included); USB Host (Available as an Accessory); WiFi/Bluetooth (available as an accessory)
Dimensions : 442 mm x 604 mm x 305 mm (LxHxW)
Display : Dot matrix LCD with white LED backlight
Net Weight : 10 kg
Outputs : 4 - 20mA; 2 In/4 Out digital I/O
Platform Construction : Stainless Steel
Protection Rating : IP67
Second Scale Input : Not applicable
Tare Range : To capacity by subtraction
Units of Measurement : Metric Tons; Gram; Kilogram; Pound; Tonne; Custom; Ounce; Pound:Ounce
Working Environment : 14°F – 104°F, 80%RH, non-condensing (-10°C – 40°C, 80%RH, non-condensing)
-
D52XW15WQDR5
Maximum Capacity : 6 kg/15 kg
Readability : 0.5 g; 1 g
Readability (Certified) : 2 g; 5 g
Platform Size : 305 mm x 305 mm
Legal for Trade : EC Type Approvable; OIML
Power : Rechargeable Battery (Not Included); AC Power (Included)
Battery Life : 20 Hours with Rechargeable Battery
Communication : Ethernet (Available as an Accessory); 2nd RS232/RS485/USB (available as an accessory); RS232 (Included); USB Host (Available as an Accessory); WiFi/Bluetooth (available as an accessory)
Dimensions : 588 mm x 122 mm x 305 mm (LxHxW)
Display : Dot matrix LCD with white LED backlight
Net Weight : 10 kg
Outputs : 4 - 20mA; 2 In/4 Out digital I/O
Platform Construction : Stainless Steel
Protection Rating : IP67
Second Scale Input : Not applicable
Tare Range : To capacity by subtraction
Units of Measurement : Metric Tons; Gram; Kilogram; Pound; Tonne; Custom; Ounce; Pound:Ounce
Working Environment : 14°F – 104°F, 80%RH, non-condensing (-10°C – 40°C, 80%RH, non-condensing)
-

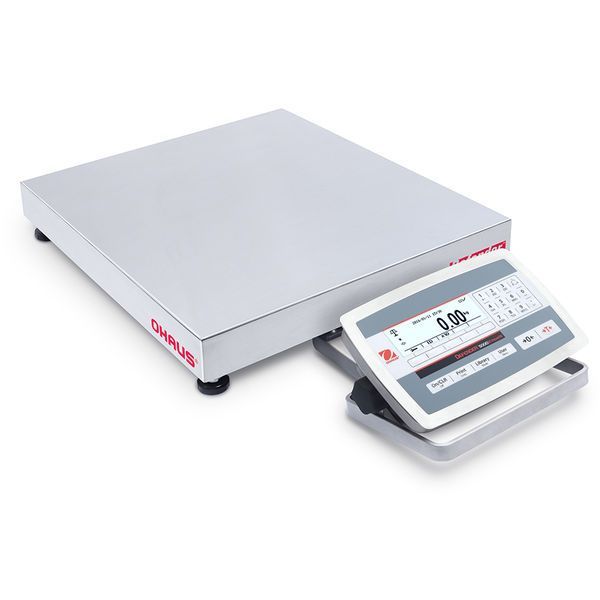

D52XW15WQDL5
Maximum Capacity : 6 kg/15 kg
Readability : 0.5 g; 1 g
Readability (Certified) : 2 g; 5 g
Platform Size : 400 mm x 400 mm
Legal for Trade : EC Type Approvable; OIML
Power : Rechargeable Battery (Not Included); AC Power (Included)
Battery Life : 20 Hours with Rechargeable Battery
Communication : Ethernet (Available as an Accessory); 2nd RS232/RS485/USB (available as an accessory); RS232 (Included); USB Host (Available as an Accessory); WiFi/Bluetooth (available as an accessory)
Dimensions : 677 mm x 122 mm x 400 mm (LxHxW)
Display : Dot matrix LCD with white LED backlight
Net Weight : 17 kg
Outputs : 4 - 20mA; 2 In/4 Out digital I/O
Platform Construction : Stainless Steel
Protection Rating : IP67
Second Scale Input : Not applicable
Tare Range : To capacity by subtraction
Units of Measurement : Metric Tons; Gram; Kilogram; Pound; Tonne; Custom; Ounce; Pound:Ounce
Working Environment : 14°F – 104°F, 80%RH, non-condensing (-10°C – 40°C, 80%RH, non-condensing)
-
D52XW15WQDR6
Maximum Capacity : 6 kg/15 kg
Readability : 0.5 g; 1 g
Readability (Certified) : 2 g; 5 g
Platform Size : 305 mm x 305 mm
Legal for Trade : EC Type Approvable; OIML
Power : Rechargeable Battery (Not Included); AC Power (Included)
Battery Life : 20 Hours with Rechargeable Battery
Communication : Ethernet (Available as an Accessory); 2nd RS232/RS485/USB (available as an accessory); RS232 (Included); USB Host (Available as an Accessory); WiFi/Bluetooth (available as an accessory)
Dimensions : 442 mm x 604 mm x 305 mm (LxHxW)
Display : Dot matrix LCD with white LED backlight
Net Weight : 10 kg
Outputs : 4 - 20mA; 2 In/4 Out digital I/O
Platform Construction : Stainless Steel
Protection Rating : IP67
Second Scale Input : Not applicable
Tare Range : To capacity by subtraction
Units of Measurement : Metric Tons; Gram; Kilogram; Pound; Tonne; Custom; Ounce; Pound:Ounce
Working Environment : 14°F – 104°F, 80%RH, non-condensing (-10°C – 40°C, 80%RH, non-condensing)
-

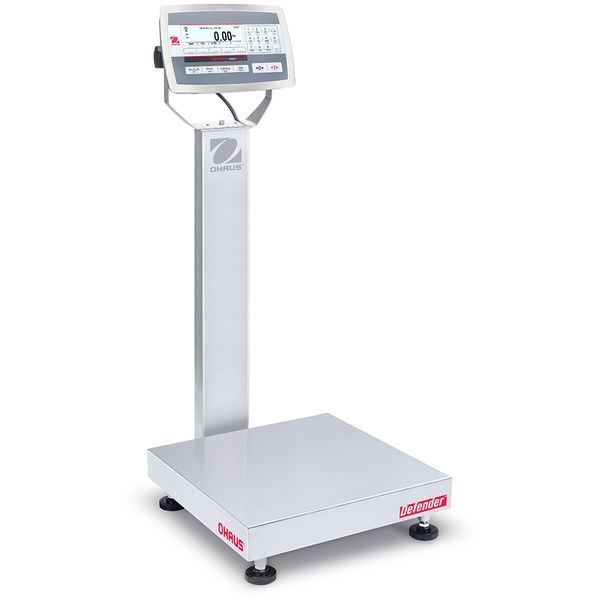

D52XW15WQDL7
Maximum Capacity : 6 kg/15 kg
Readability : 0.5 g; 1 g
Readability (Certified) : 2 g; 5 g
Platform Size : 400 mm x 400 mm
Legal for Trade : EC Type Approvable; OIML
Power : Rechargeable Battery (Not Included); AC Power (Included)
Battery Life : 20 Hours with Rechargeable Battery
Communication : Ethernet (Available as an Accessory); 2nd RS232/RS485/USB (available as an accessory); RS232 (Included); USB Host (Available as an Accessory); WiFi/Bluetooth (available as an accessory)
Dimensions : 570 mm x 934 mm x 400 mm (LxHxW)
Display : Dot matrix LCD with white LED backlight
Net Weight : 20 kg
Outputs : 4 - 20mA; 2 In/4 Out digital I/O
Platform Construction : Stainless Steel
Protection Rating : IP67
Second Scale Input : Not applicable
Tare Range : To capacity by subtraction
Units of Measurement : Metric Tons; Gram; Kilogram; Pound; Tonne; Custom; Ounce; Pound:Ounce
Working Environment : 14°F – 104°F, 80%RH, non-condensing (-10°C – 40°C, 80%RH, non-condensing)
