Ohaus Guardian 5000 Hotplates and Stirrers
|
|
Reliable Digital Hotplate Stirrers with Exceptional Safety Features for Everyday Use
OHAUS Guardian 5000™ Hotplates Stirrers are designed for safety and simplicity in all research, academic and industrial applications. The design ensures proper mixing and temperature control of the top plate or your sample when using the optional temperature probe. Heating models include a Single Point Calibration feature for multiple setpoints. Select from five models with three plate sizes for your everyday heating and stirring applications.
Features:
- SafetyHeat™ protects the lab - an industry-leading early detection system uses two independent safety controls to monitor the electronics and stop heating before an overtemperature condition occurs.
- Precise stirring from 60 to 1600 rpm is made possible by the design of a powerful motor, strong magnet and software controlled ramp rate, ensuring secure magnetic coupling for viscous applications.
- The bright LCD display includes large temperature and speed settings, intuitive icons and a prominent hot top indicator – all designed to quickly and easily monitor performance from across the lab.
Specifications
| Brand Name | Ohaus |
| Application | Laboratory |
Additional Information
| Min. Order Quantity | 10 Piece |
-

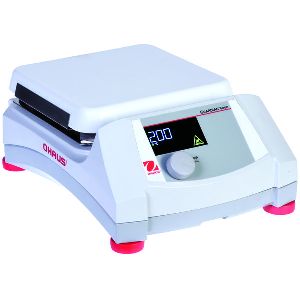

e-G51HP07C
Function : Heating
Capacity : 15 L
Plate Construction : Ceramic
Plate Size : 7 in x 7 in (178 mm x 178 mm)
Temp. Range : Ambient +5°C – 500°C
Calibration : Temperature Calibration 3 Plate/3 Probe
Control : Digital
Dimensions : 12.2 in x 4.8 in x 8.8 in (309 mm x 122 mm x 223 mm) (LxHxW)
Display : Custom Back-lit LCD
In-Use Covernuse cover : Available as an Accessory
Net Weight : 5.7 lb (2.6 kg)
Power : 230V, 6.0A, 50/60Hz
Power Consumption : 1,242 W
Safety Certification : TUV
Temperature Probe : Available as an Accessory
Working Environment : 41°F – 104°F, 80% RH, Non-condensing (5°C – 40°C, 80% RH, Non-condensing)
-

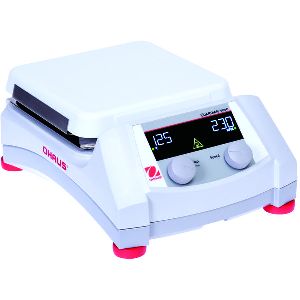

e-G51HS07C
Function : Heating and Stirring
Capacity : 15 L
Plate Construction : Ceramic
Plate Size : 7 in x 7 in (178 mm x 178 mm)
Temp. Range : Ambient +5°C – 500°C
Speed Range : 60 rpm ; 1,600 rpm
Calibration : Temperature Calibration 3 Plate/3 Probe
Control : Digital
Dimensions : 12.2 in x 4.8 in x 8.8 in (309 mm x 122 mm x 223 mm) (LxHxW)
Display : Custom Back-lit LCD
In-Use Covernuse cover : Available as an Accessory
Net Weight : 5.7 lb (2.6 kg)
Power : 230V, 6.0A, 50/60Hz
Power Consumption : 1,242 W
Safety Certification : TUV
Speed Range : 60 to 1600 rpm
Speed Stability : +/-2%
Temperature Probe : Available as an Accessory
Temp. Stability : +/-3% Plate, below 100°C +/-2°C and +/-1% Probe, below 100°C +/-1°C
Working Environment : 41°F – 104°F, 80% RH, Non-condensing (5°C – 40°C, 80% RH, Non-condensing)
-

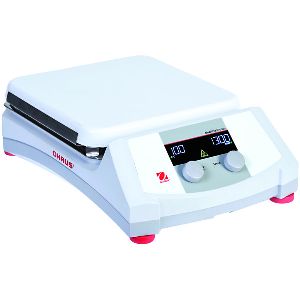

e-G51HS10C
Function : Heating and Stirring
Capacity : 18 L
Plate Construction : Ceramic
Plate Size : 10 in x 10 in (254 mm x 254 mm)
Temp. Range : Ambient +5°C – 500°C
Speed Range : 60 rpm ; 1,600 rpm
Calibration : Temperature Calibration 3 Plate/3 Probe
Control : Digital
Dimensions : 16.3 in x 4.8 in x 11.25 in (415 mm x 122 mm x 286 mm) (LxHxW)
Display : Custom Back-lit LCD
In-Use Covernuse cover : Available as an Accessory
Net Weight : 11.5 lb (5.2 kg)
Power : 230V, 7A, 50/60Hz
Power Consumption : 1,449 W
Safety Certification : TUV
Speed Range : 60 to 1600 rpm
Speed Stability : +/-2%
Temperature Probe : Available as an Accessory
Temp. Stability : +/-3% Plate, below 100°C +/-2°C and +/-1% Probe, below 100°C +/-1°C
Working Environment : 41°F – 104°F, 80% RH, Non-condensing (5°C – 40°C, 80% RH, Non-condensing)
-

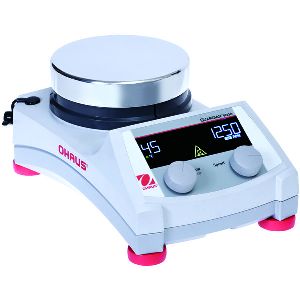

e-G51HSRDM
Function : Heating and Stirring
Capacity : 20 L
Plate Construction : Aluminum
Plate Size : 5.3 in (135 mm)
Temp. Range : Ambient +5°C – 380°C
Speed Range : 60 rpm ; 1,600 rpm
Calibration : Temperature Calibration 3 Plate/3 Probe
Control : Digital
Dimensions : 10.5 in x 5 in x 6.8 in (267 mm x 126 mm x 173 mm) (LxHxW)
Display : Custom Back-lit LCD
In-Use Covernuse cover : Available as an Accessory
Net Weight : 5.7 lb (2.6 kg)
Power : 230V, 4.6A, 50/60Hz
Power Consumption : 952 W
Safety Certification : TUV
Speed Range : 60 to 1600 rpm
Speed Stability : +/-2%
Temperature Probe : Available as an Accessory
Temp. Stability : +/-3% Plate, below 100°C +/-2°C and +/-1% Probe, below 100°C +/-1°C
Working Environment : 41°F – 104°F, 80% RH, Non-condensing (5°C – 40°C, 80% RH, Non-condensing)
-

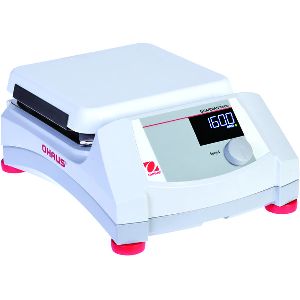

e-G51ST07C
Function : Stirring
Capacity : 15 L
Plate Construction : Ceramic
Plate Size : 7 in x 7 in (178 mm x 178 mm)
Speed Range : 60 rpm ; 1,600 rpm
Calibration : Temperature Calibration 3 Plate/3 Probe
Control : Digital
Dimensions : 12.2 in x 4.8 in x 8.8 in (309 mm x 122 mm x 223 mm) (LxHxW)
Display : Custom Back-lit LCD
In-Use Covernuse cover : Available as an Accessory
Net Weight : 5.7 lb (2.6 kg)
Power : 230V, 4.6A, 50/60Hz
Power Consumption : 104 W
Safety Certification : TUV
Speed Range : 60 to 1600 rpm
Speed Stability : +/-2%
Temperature Probe : Available as an Accessory
Temp. Stability : +/-3% Plate, below 100°C +/-2°C and +/-1% Probe, below 100°C +/-1°C
Working Environment : 41°F – 104°F, 80% RH, Non-condensing (5°C – 40°C, 80% RH, Non-condensing)
