Ohaus Guardian 7000 Hotplates and Stirrers
|
|
Durable Digital Hotplate Stirrers with Superior Safety Features and Intelligent Performance
OHAUS Guardian 7000 Hotplate Stirrers are designed with outstanding safety features and superior heating and mixing performance. The SmartHousing™ is chemical resistant with an innovative, easy-to-clean design that channels spills away from internal components and the angled glass control panel. The bright LCD display includes intuitive icons as well as temperature, speed and time settings – all designed to monitor performance from across the lab.
Features:
- Protect your lab with SmartPresence™ and SmartLink™ technologies. These exclusive features automatically shut off the heater if no one is detected after a user-defined "time out" period has elapsed.
- SafetyHeat™ protects the lab - an industry-leading early detection system uses two independent safety controls to monitor the electronics and stop heating before an overtemperature condition occurs.
- Precise stirring from 60 to 1600 rpm is made possible by the design of a powerful motor, strong magnet and software controlled ramp rate, ensuring secure magnetic coupling for viscous applications.
Specifications
| Brand Name | Ohaus |
| Application | Laboratory |
Additional Information
| Min. Order Quantity | 10 Piece |
-

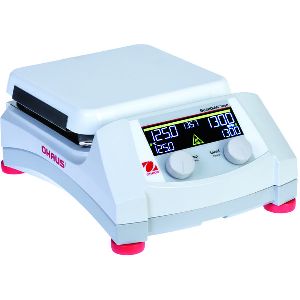

e-G71HS07C
Function : Heating and Stirring
Capacity : 15 L
Plate Construction : Ceramic
Plate Size : 7 in x 7 in (178 mm x 178 mm)
Temp. Range : Ambient +5°C – 500°C
Speed Range : 60 rpm ; 1,600 rpm
Calibration : Temperature Calibration 5 Plate/5 Probe
Communication : USB
Control : Digital
Dimensions : 12.2 in x 4.8 in x 8.8 in (309 mm x 122 mm x 223 mm) (LxHxW)
Display : Custom Back-lit LCD
In-Use Covernuse cover : Available as an Accessory
Net Weight : 5.7 lb (2.6 kg)
Power : 230V, 6.0A, 50/60Hz
Power Consumption : 1,242 W
Safety Certification : TUV
Speed Range : 60 to 1600 rpm
Speed Stability : +/-2%
Temperature Probe : Pt1000
Temp. Stability : +/-1% Plate, below 100°C +/-1°C and +/-0.5% Probe, below 100°C +/-1°C
-

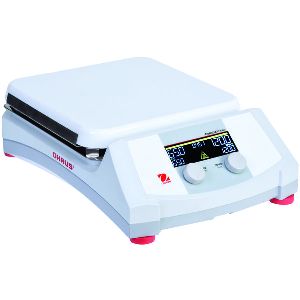

e-G71HS10C
Function : Heating and Stirring
Capacity : 18 L
Plate Construction : Ceramic
Plate Size : 10 in x 10 in (254 mm x 254 mm)
Temp. Range : Ambient +5°C – 500°C
Speed Range : 60 rpm ; 1,600 rpm
Calibration : Temperature Calibration 5 Plate/5 Probe
Communication : USB
Control : Digital
Dimensions : 16.3 in x 4.8 in x 11.25 in (415 mm x 123 mm x 286 mm) (LxHxW)
Display : Custom Back-lit LCD
In-Use Covernuse cover : Available as an Accessory
Net Weight : 11.5 lb (5.2 kg)
Power : 230V, 7A, 50/60Hz
Power Consumption : 1,449 W
Safety Certification : TUV
Speed Range : 60 to 1600 rpm
Speed Stability : +/-2%
Temperature Probe : Pt1000
Temp. Stability : +/-1% Plate, below 100°C +/-1°C and +/-0.5% Probe, below 100°C +/-1°C
-

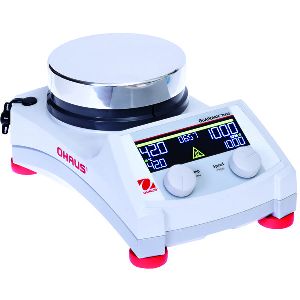

e-G71HSRDM
Function : Heating and Stirring
Capacity : 20 L
Plate Construction : Aluminum
Plate Size : 5.3 in (135 mm)
Temp. Range : Ambient +5°C – 380°C
Speed Range : 60 rpm ; 1,600 rpm
Calibration : Temperature Calibration 5 Plate/5 Probe
Communication : USB
Control : Digital
Dimensions : 10.5 in x 5 in x 6.8 in (267 mm x 126 mm x 173 mm) (LxHxW)
Display : Custom Back-lit LCD
In-Use Covernuse cover : Available as an Accessory
Net Weight : 5.7 lb (2.6 kg)
Power : 230V, 4.6A, 50/60Hz
Power Consumption : 952 W
Safety Certification : TUV
Speed Range : 60 to 1600 rpm
Speed Stability : +/-2%
Temperature Probe : Pt1000
Temp. Stability : +/-1% Plate, below 100°C +/-1°C and +/-0.5% Probe, below 100°C +/-1°C
