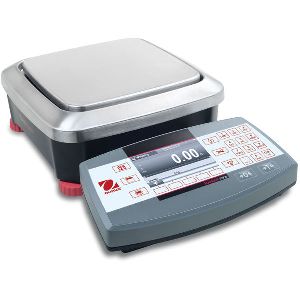

Ohaus Ranger 7000 Bench Scale
|
|
Top-of-the-Line Compact Scales for Even the Most Complex Industrial Applications
For Ranger 7000, there is one resounding theme: it offers the best of every ingenious feature that make OHAUS industrial products the right tools for your toughest weighing jobs. Ranger 7000 boasts the highest resolution, largest display, most application modes and connectivity options, as well as the largest memory library of any industrial bench scale in the OHAUS portfolio.
Features:
- Simplify complex applications and minimize the need for manual calculations with 10 advanced application modes, peripheral device control and an optional kit for a second scale platform.
- The most precise scale in its class with one-second stabilization time, up to 75,000d or 350,000d display resolution and legal-for-trade certifications.
- Extremely durable scale designed to thrive in rugged industrial environments. Features IP54-rated metal housing and sealed metal terminal.
Specifications
| Application | Industrial |
| Brand Name | Ohaus |
Additional Information
| Min. Order Quantity | 10 Piece |
-
R71MHD3
Maximum Capacity : 6 lb (3 kg)
Readability : 0.00002 lb (0.01 g)
Readability (Certified) : 0.0002 lb (0.1 g)
Platform Size : 8.3 in x 8.3 in (210 mm x 210 mm)
Battery Life : 9 Hours with Rechargeable Battery
Second Scale Input : Yes
Communication : 2nd RS232 (Available as an Accessory); Ethernet (Available as an Accessory); USB (Included); RS232 (Included)
Dimensions : 16.5 in x 4.5 in x 11 in (420 mm x 114 mm x 280 mm) (LxHxW)
Display : 4.3’’/10.9cm TFT Graphic LCD
Internal Calibration : AutoCal™ - Automatic
In-Use Covernuse cover : Included
Legal for Trade : NTEP Certified; EC Type Approvable; Measurement Canada Approved
Linearity ± : 0.02 g
Net Weight : 16 lb (7.2 kg)
Outputs : 2 In/4 Out digital I/O
Platform Construction : Stainless Steel
Power : Rechargeable Battery (Not Included); AC Power (Included)
Protection Rating : IP54
Tare Range : To capacity by subtraction
Transportation Case : Not Applicable
-
R71MD3
Maximum Capacity : 6 lb (3 kg)
Readability : 0.0001 lb (0.05 g)
Readability (Certified) : 0.001 lb (0.5 g)
Platform Size : 11 in x 11 in (280 mm x 280 mm)
Battery Life : 12 Hours with Rechargeable Battery
Second Scale Input : Yes
Communication : 2nd RS232 (Available as an Accessory); Ethernet (Available as an Accessory); USB (Included); RS232 (Included)
Dimensions : 16.5 in x 4.5 in x 11 in (420 mm x 114 mm x 280 mm) (LxHxW)
Display : 4.3’’/10.9cm TFT Graphic LCD
Internal Calibration : Not Applicable
In-Use Covernuse cover : Included
Legal for Trade : NTEP Certified; EC Type Approvable; Measurement Canada Approved
Linearity ± : 0.1 g
Net Weight : 15 lb (6.8 kg)
Outputs : 2 In/4 Out digital I/O
Platform Construction : Stainless Steel
Power : Rechargeable Battery (Not Included); AC Power (Included)
Protection Rating : IP54
Tare Range : To capacity by subtraction
Transportation Case : Not Applicable
-
R71MHD6
Maximum Capacity : 15 lb (6 kg)
Readability : 0.00005 lb (0.02 g)
Readability (Certified) : 0.0005 lb (0.2 g)
Platform Size : 8.3 in x 8.3 in (210 mm x 210 mm)
Battery Life : 9 Hours with Rechargeable Battery
Second Scale Input : Yes
Communication : 2nd RS232 (Available as an Accessory); Ethernet (Available as an Accessory); USB (Included); RS232 (Included)
Dimensions : 16.5 in x 4.5 in x 11 in (420 mm x 114 mm x 280 mm) (LxHxW)
Display : 4.3’’/10.9cm TFT Graphic LCD
Internal Calibration : AutoCal™ - Automatic
In-Use Covernuse cover : Included
Legal for Trade : NTEP Certified; EC Type Approvable; Measurement Canada Approved
Linearity ± : 0.04 g
Net Weight : 16 lb (7.2 kg)
Outputs : 2 In/4 Out digital I/O
Platform Construction : Stainless Steel
Power : Rechargeable Battery (Not Included); AC Power (Included)
Protection Rating : IP54
Tare Range : To capacity by subtraction
Transportation Case : Not Applicable
-
R71MHD6
Maximum Capacity : 15 lb (6 kg)
Readability : 0.0002 lb (0.1 g)
Readability (Certified) : 0.002 lb (1 g)
Platform Size : 11 in x 11 in (280 mm x 280 mm)
Battery Life : 12 Hours with Rechargeable Battery
Second Scale Input : Yes
Communication : 2nd RS232 (Available as an Accessory); Ethernet (Available as an Accessory); USB (Included); RS232 (Included)
Dimensions : 16.5 in x 4.5 in x 11 in (420 mm x 114 mm x 280 mm) (LxHxW)
Display : 4.3’’/10.9cm TFT Graphic LCD
Internal Calibration : Not Applicable
In-Use Covernuse cover : Included
Legal for Trade : NTEP Certified; EC Type Approvable; Measurement Canada Approved
Linearity ± : 0.2 g
Net Weight : 15 lb (6.8 kg)
Outputs : 2 In/4 Out digital I/O
Platform Construction : Stainless Steel
Power : Rechargeable Battery (Not Included); AC Power (Included)
Protection Rating : IP54
Tare Range : To capacity by subtraction
Transportation Case : Not Applicable
-
R71MD6
Maximum Capacity : 15 lb (6 kg)
Readability : 0.0002 lb (0.1 g)
Readability (Certified) : 0.002 lb (1 g)
Platform Size : 11 in x 11 in (280 mm x 280 mm)
Battery Life : 12 Hours with Rechargeable Battery
Second Scale Input : Yes
Communication : 2nd RS232 (Available as an Accessory); Ethernet (Available as an Accessory); USB (Included); RS232 (Included)2nd RS232 (Available as an Accessory); Ethernet (Available as an Accessory); USB (Included); RS232 (Included)
Dimensions : 16.5 in x 4.5 in x 11 in (420 mm x 114 mm x 280 mm) (LxHxW)
Display : 4.3’’/10.9cm TFT Graphic LCD
Internal Calibration : Not Applicable
In-Use Covernuse cover : Included
Legal for Trade : NTEP Certified; EC Type Approvable; Measurement Canada Approved
Linearity ± : 0.2 g
Net Weight : 15 lb (6.8 kg)
Outputs : 2 In/4 Out digital I/O
Platform Construction : Stainless Steel
Power : Rechargeable Battery (Not Included); AC Power (Included)
Protection Rating : IP54
Tare Range : To capacity by subtraction
Transportation Case : Not Applicable
-
R71MHD15
Maximum Capacity : 30 lb (15 kg)
Readability : 0.0002 lb (0.1 g)
Readability (Certified) : 0.002 lb (1 g)
Platform Size : 12.2 in x 14.8 in (311 mm x 377 mm)
Battery Life : 9 Hours with Rechargeable Battery
Second Scale Input : Yes
Communication : 2nd RS232 (Available as an Accessory); Ethernet (Available as an Accessory); USB (Included); RS232 (Included)
Dimensions : 18.4 in x 5 in x 14.9 in (467 mm x 128 mm x 377 mm) (LxHxW)
Display : 4.3’’/10.9cm TFT Graphic LCD
Internal Calibration : AutoCal™ - Automatic
In-Use Covernuse cover : Included
Legal for Trade : NTEP Certified; EC Type Approvable; Measurement Canada Approved
Linearity ± : 0.2 g
Net Weight : 24 lb (10.9 kg)
Outputs : 2 In/4 Out digital I/O
Platform Construction : Stainless Steel
Power : Rechargeable Battery (Not Included); AC Power (Included)
Protection Rating : IP54
Tare Range : To capacity by subtraction
Transportation Case : Not Applicable
-
R71MD15
Maximum Capacity : 30 lb (15 kg)
Readability : 0.0005 lb (0.2 g)
Readability (Certified) : 0.005 lb (2 g)
Platform Size : 12.2 in x 14.8 in (311 mm x 377 mm)
Battery Life : 12 Hours with Rechargeable Battery
Second Scale Input : Yes
Communication : 2nd RS232 (Available as an Accessory); Ethernet (Available as an Accessory); USB (Included); RS232 (Included)
Dimensions : 18.4 in x 5 in x 14.9 in (467 mm x 128 mm x 377 mm) (LxHxW)
Display : 4.3’’/10.9cm TFT Graphic LCD
Internal Calibration : Not Applicable
In-Use Covernuse cover : Included
Legal for Trade : NTEP Certified; EC Type Approvable; Measurement Canada Approved
Linearity ± : 0.4 g
Net Weight : 21.8 lb (9.9 kg)
Outputs : 2 In/4 Out digital I/O
Platform Construction : Stainless Steel
Power : Rechargeable Battery (Not Included); AC Power (Included)
Protection Rating : IP54
Tare Range : To capacity by subtraction
Transportation Case : Not Applicable
-
R71MHD35
Maximum Capacity : 70 lb (35 kg)
Readability : 0.0002 lb (0.1 g)
Readability (Certified) : 0.002 lb (1 g)
Platform Size : 12.2 in x 14.8 in (311 mm x 377 mm)
Battery Life : 9 Hours with Rechargeable Battery
Second Scale Input : Yes
Communication : 2nd RS232 (Available as an Accessory); Ethernet (Available as an Accessory); USB (Included); RS232 (Included)
Dimensions : 18.4 in x 5 in x 14.9 in (467 mm x 128 mm x 377 mm) (LxHxW)
Display : 4.3’’/10.9cm TFT Graphic LCD
Internal Calibration : AutoCal™ - Automatic
In-Use Covernuse cover : Included
Legal for Trade : NTEP Certified; EC Type Approvable; Measurement Canada Approved
Linearity ± : 0.2 g
Net Weight : 24 lb (10.9 kg)
Outputs : 2 In/4 Out digital I/O
Platform Construction : Stainless Steel
Power : Rechargeable Battery (Not Included); AC Power (Included)
Protection Rating : IP54
Tare Range : To capacity by subtraction
Transportation Case : Not Applicable
-
R71MD35
Maximum Capacity : 70 lb (35 kg)
Readability : 0.001 lb (0.5 g)
Readability (Certified) : 0.01 lb (5 g)
Platform Size : 12.2 in x 14.8 in (311 mm x 377 mm)
Battery Life : 12 Hours with Rechargeable Battery
Second Scale Input : Yes
Communication : 2nd RS232 (Available as an Accessory); Ethernet (Available as an Accessory); USB (Included); RS232 (Included)
Dimensions : 18.4 in x 5 in x 14.9 in (467 mm x 128 mm x 377 mm) (LxHxW)
Display : 4.3’’/10.9cm TFT Graphic LCD
Internal Calibration : Not Applicable
In-Use Covernuse cover : Included
Legal for Trade : NTEP Certified; EC Type Approvable; Measurement Canada Approved
Linearity ± : 1 g
Net Weight : 21.8 lb (9.9 kg)
Outputs : 2 In/4 Out digital I/O
Platform Construction : Stainless Steel
Power : Rechargeable Battery (Not Included); AC Power (Included)
Protection Rating : IP54
Tare Range : To capacity by subtraction
Transportation Case : Not Applicable
-
R71MD60
Maximum Capacity : 150 lb (60 kg)
Readability : 0.002 lb (1 g)
Readability (Certified) : 0.02 lb (10 g)
Platform Size : 12.2 in x 14.8 in (311 mm x 377 mm)
Battery Life : 12 Hours with Rechargeable Battery
Second Scale Input : Yes
Communication : 2nd RS232 (Available as an Accessory); Ethernet (Available as an Accessory); USB (Included); RS232 (Included)
Dimensions : 18.4 in x 5 in x 14.9 in (467 mm x 128 mm x 377 mm) (LxHxW)
Display : 4.3’’/10.9cm TFT Graphic LCD
Internal Calibration : Not Applicable
In-Use Covernuse cover : Included
Legal for Trade : NTEP Certified; EC Type Approved; Measurement Canada Approved
Linearity ± : 2 g
Net Weight : 21.8 lb (9.9 kg)
Outputs : 2 In/4 Out digital I/O
Platform Construction : Stainless Steel
Power : Rechargeable Battery (Not Included); AC Power (Included)
Protection Rating : IP54
Tare Range : To capacity by subtraction
Transportation Case : Not Applicable
